Code Coverage for simplicity studio IDE

You will see how to generate code coverage for embedded applications in Simplicity Studio IDE using RKTracer Tool with 3 simple steps.

  1. Enable the RKTracer tool and rebuild the application.
  2. Test instrumented application and save coverage data.
  3. Generate code coverage reports

Code Coverage tool integration with Simplicity Studio  IDE

1: Ensure you have closed the simplicity studio IDE, open a new command prompt, and run the following command to integrate the RKTracer tool with simplicity studio IDE.

rktracer -ec -integrate

Code Coverage tool integration with simplicity studio IDE
Code coverage tool integration with simplicity studio IDE
RKTracer tool Enabled
RKTracer tool integrated with Simplicity studio IDE

Generate Code Coverage for Embedded Application in Simplicity Studio IDE.

Prerequisites: Once you have successfully integrated the RKTracer tool. At least once you need to build and test the application in embedded target in debug mode and restart the IDE.

Enable Code Coverage Tool

  •     RKTracer ON:  Will enable RKTracer tool for instrumentation
  •     RKTracer OFF: Will disable RKTracer tool.
  •     RKTracer Reports: Will generate reports in HTML format.

Go to →Run menu →External Tools –> RKTracer ON.

RKTracer tool Enabled
RKTracer Code Coverage Tool Enabled

Rebuild application and run tests

Automatically coverage data will be saved when you terminate debug process after running the test case on the embedded target. Once testing is complete, the RKTracer tool will save the coverage data to the RK_MEM.raw file in the application working folder.

In case the embedded target is not connected to the host machine at the testing. You need to save coverage data from the rktracer variable to the application working folder in the host machine using api.

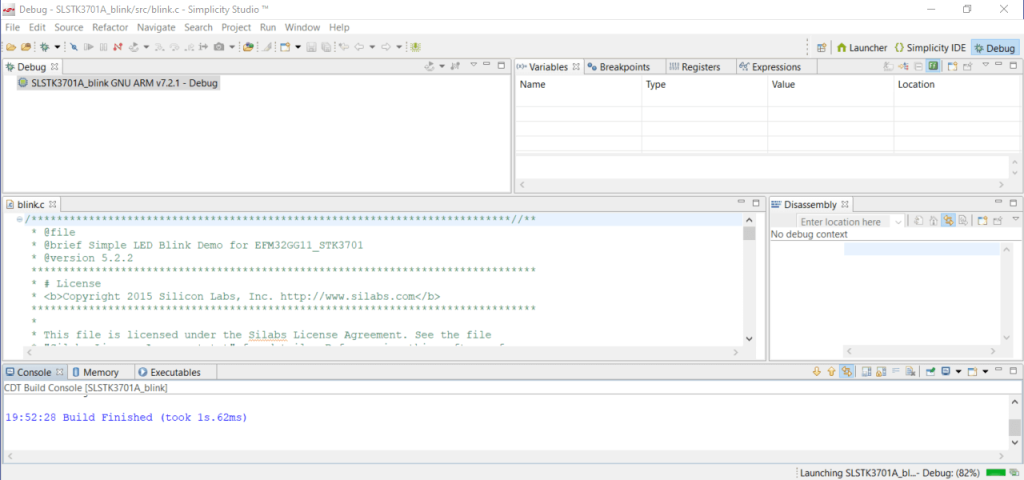

Run tests
Run Tests

Generate Code Coverage Reports.

Go to –> Run menu –> External Tools –> RKTracer Report to generate Html reports. The RKTracer tool will internally convert the RK_MEM.raw data file to “rk-coverage.txt” and map with JSON files (generated during instrumentation) in the rktracer folder and generate the HTML reports. You can manually open the HTML report using index.html.

If embedded target is not connected to host ,then contact support. We will provide customized script to transfer coverage data from embedded target to host machine.

RKTracer Html code coverage landing page.

Code Coverage report generation
Code Coverage report

Enable coverage for selected files

Generate coverage reports  for the selected folders

C:projectsounddriversbasepower

C:projectsounddriversbasepowerfirmware_loader

C:projectsounddriverscore

C:projectsoundsecuritykeys

C:projectsoundsecuritylockdown

Suppose you need code coverage for source files from three different folders, i.e., core, keys, power, and ignore coverage for folders firmware_loader and lockdown. Edit rktracer.config in the RKTracer installation folder and go to the end of the file add the following information.

ignore *.c

instrument */power/* */core/* */keys/*

never */firmware_loader/* */lockdown/*

ignore *.c = Ignores all C source files from instrumentation

Instrument = Instrument source files from given folders

never = ignore selected folder

Generate coverage reports only for selected functions from three different files.

fun_X() in source-file-X

fun_Y() in source-file-Y

fun_Z() in source-file-Z

Suppose you need code coverage for selected functions from three different files. Edit rktracer.config in the RKTracer installation folder and go to the end of the file and set the following variables as shown below.

ignore *.c

instrument *source-file-X.c *source-file-Y.c *source-file-Z.c

function-ignore *

function-instrument fun_X() fun_Y() fun_Z()

ignore *.c = Ignore all C programming source files

instrument *file-X.c *file-Y.c *file-Z.c   = Instrument only these three source files.

function-ignore * = Then ignore all functions in the above three files.

function-instrument fun_X() fun_Y() fun_Z() = Don’t ignore these three functions from these three files from instrumentation
